BCD180 Knot Filler gun

























Heating gun for Knot Filler application. Use the BCD180 Knot Filler gun to apply Knot Filler and make perfect wood repairs - www.woodrepair.com
How does it work?
Use the BCD 180 Knot Filler gun this easy:
- Place the BCD180 Knot Filler Gun on a flat surface and plug the cord into an outlet
- The BCD180 Knot Filler Gun is now turned on
- After approx. 7 minutes the Knot Filler gun will be ready for application.
- The Knot Filler gun is set for 170°C
- Apply Knot Filler into the repair/damage
- Turn-off the Knot Filler gun by unplugging it after application.
IMPORTANT!
- Never pull out sticks of the BCD180 Knot Filler gun as it ruins the chamber of the gun.
- Never place the BCD180 Knot Filler gun on the side and never point it upwards.
- Follow the instructions in the technical datasheet and/or productsheet
Product information "BCD180 Knot Filler gun"
The BCD 180 Knot Filler gun is a basic Knot Filler gun developed for Knot Filler application. It is perfect for window- and floor installers, carpenters, maintenance, and DIY'ers who need to repair knots, cracks etc. in wood from time to time.

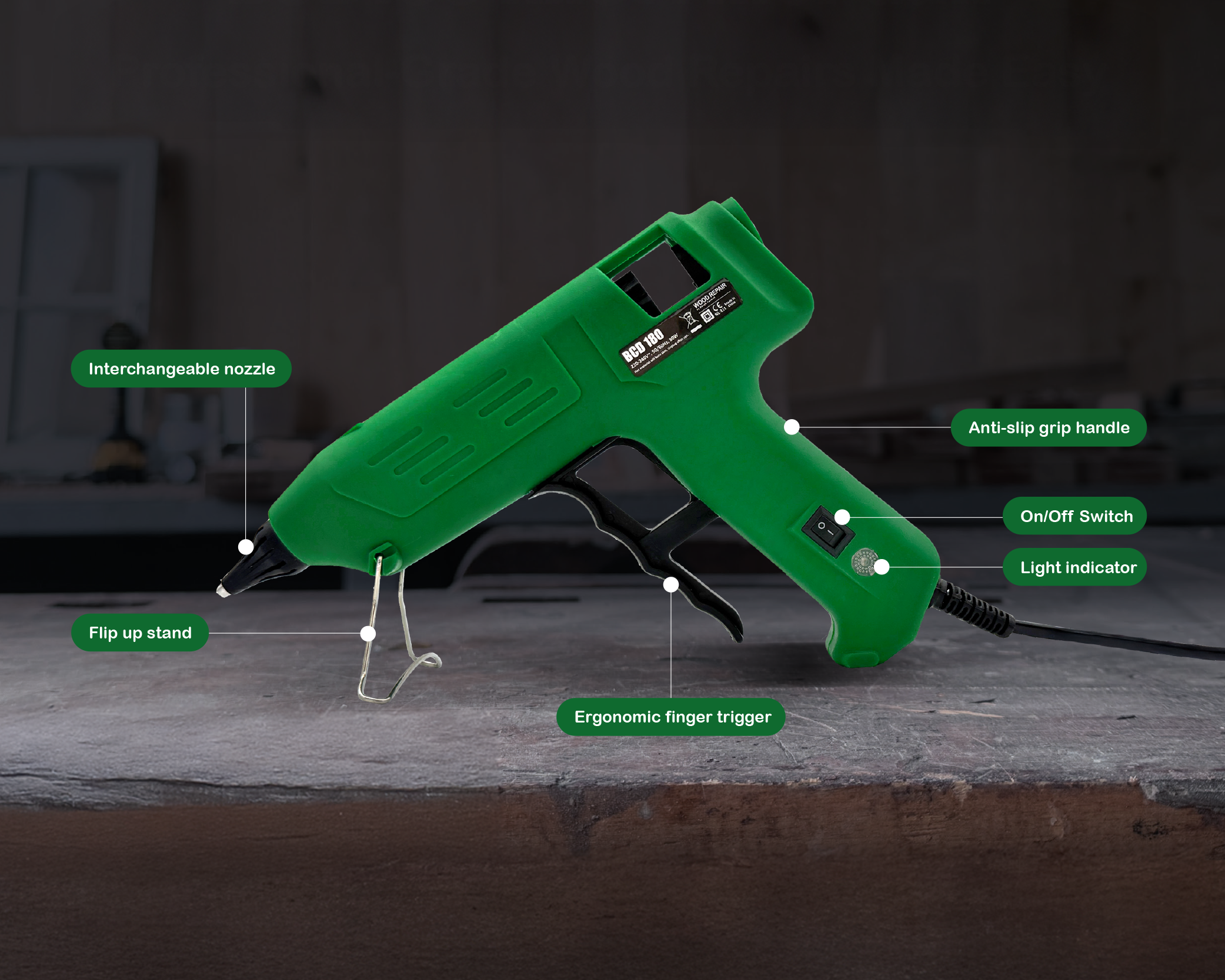

Features:
On/Off Switch
Precise control with the on/off function provides safe and easy operation. The gun can remain plugged in between tasks – simply switch off when not in use.
Power Indicator Light
A clear LED light indicates when the gun is switched on and heating up, ensuring increased safety and optimal operational control.
Constant Temperature
Operates at a steady 190 °C for fast and efficient application.
Replaceable Nozzle
The nozzle can be replaced when needed or if a different outlet size is desired. Our standard nozzles are Ø1.5 mm, 3 mm, and 4 mm.
Compatible with Ø12 mm Knot Filler Sticks
Fits Ø12 mm Wood Repair Knot Filler sticks for optimal performance and the best results.
Technical Data:
- Dimensions: 220 × 170 × 35 mm
- Weight: 250 g
- Pre-set operating temperature: 190 °C
- Operating voltage: 220–240 VAC, 50–60 Hz
- Power consumption: 80 W
- Heating time: approx. 7 minutes
- Replaceable nozzle
- Carton box and manual
- Included in the Wood Repair Basic Kit and Wood Repair Plus+ Kit

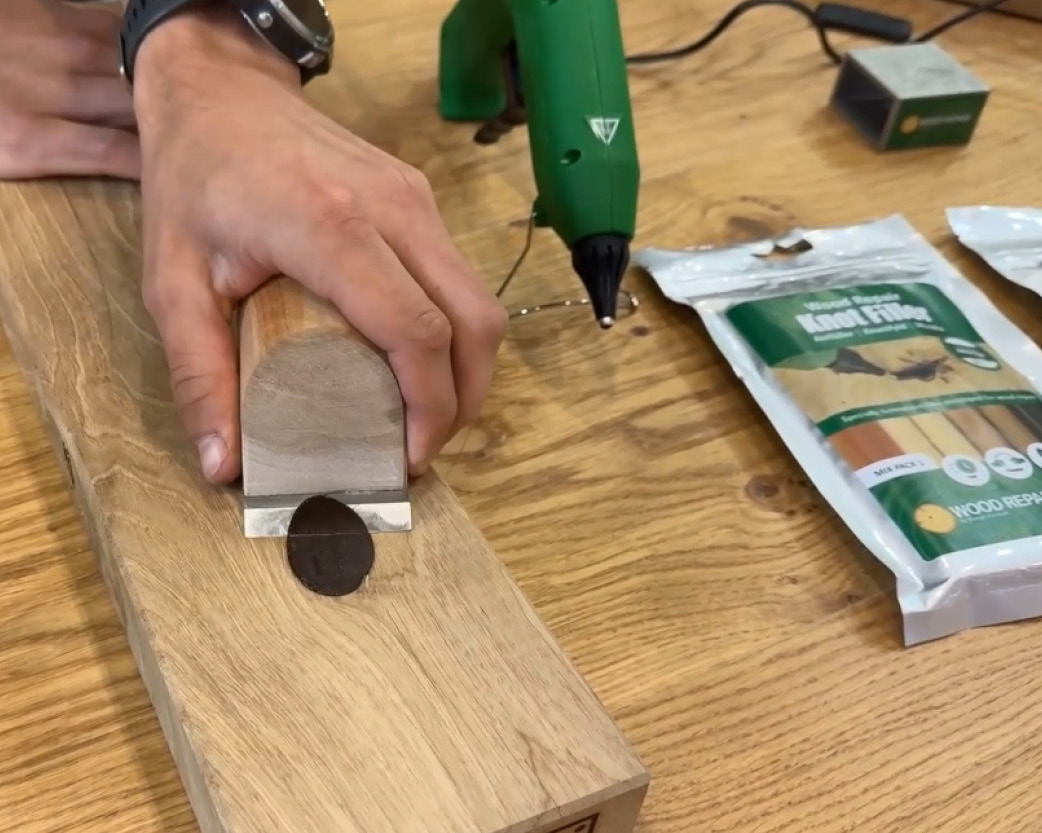

Step-by-Step Guide
5 easy steps to perfect repairs

FYLD

AFKØL

SKÆR

PUDS

EFTERBEHANDL
